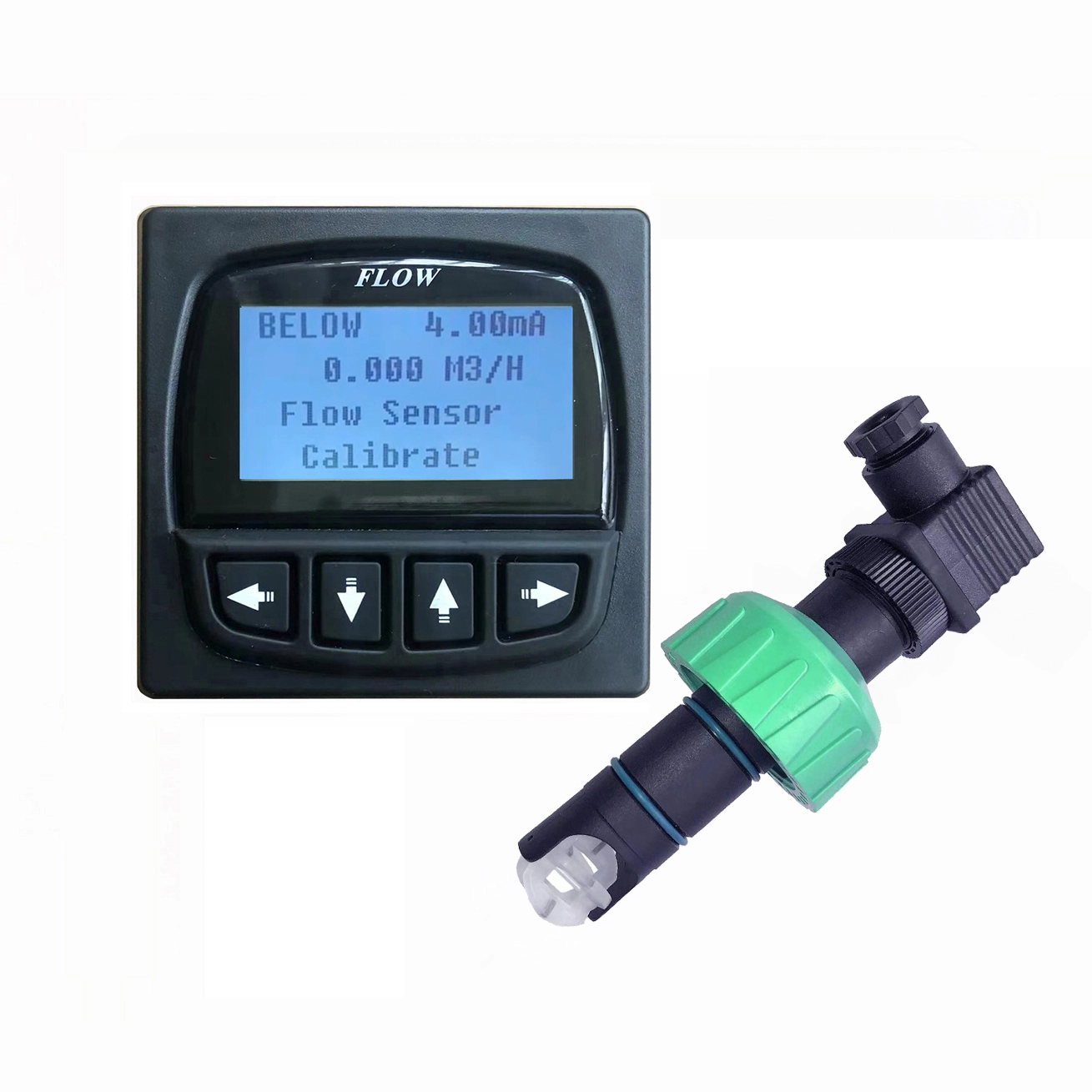

JIRS PP Paddle Wheel Flow Transmitter FL-8850
This impeller flow transmitter is an economical impeller-type flow measurement device. All flow-through components are made of PP (polypropylene), providing excellent resistance to weak acids, weak alkalis, and general corrosive liquids. It features a built-in high-sensitivity magnetic induction acquisition unit and signal processing circuitry.
Main Technical Specification
| Display | Lattice LCD with background light |
| Input | Plug-in type paddle-wheeler sensor |
| Output | 4～20mA ratio control output/transmitted output ; Limit warning in height of instantaneous flow or batch; processing volume (electric relay nodal point output); RS485 communicative output; Pulsing signal output |
| Power requirement | DC9-26V (recommend DC24V) |
| Installation | Hydro disc-mounting, wall surface mounting and integrated piping installation. It can apply to any complex demands of field installation. |
| Overall dimension | 96×96×96mm （3.78×3.78×3.78 inch） |
| Levels of protection | Fit IP65 requirements.It is Anti- chemical corrosion and has varied installation methods and apples to any complex site environment. |
| Measurement parameters | Instantaneous delivery,integrated flow |
| Maximum counting frequency | 10KHz（equivalent transducer revolution is 120000rpm） |
| Accuracy of measurement | Linearity: ±1%; Repeatability ：±0.5% |
| Environmental requirements | Temperature: -20～+70℃（-4～158F° ）; Humidity: 0～95%relative humidity, no condensation of moisture |
Display and introductionof the transmitter
GND── Sensor Ground wire
PIN── Sensor Signal input
+5V——Electrical power of sensor
P+——Pulse output P OUT+
P- ——Pulse input P OUT-
S21——Upper limit Alarm of the electric S2
S22——Upper limit Alarm of the electric S2
S11——Lower limit Alarm of the electric S1
S12——Lower limit Alarm of the electric S1
A——RS485A
B——RS485A
Description
Industrial PP Flow Transmitter FL-8850 | Corrosion Resistant.Designed specifically for industrial pipelines in water treatment, cooling circulation, lightly corrosive chemical processes, and agricultural irrigation, it boasts a compact structure, easy installation, low maintenance, and long-term stable reliability. Standard configuration includes industrial-grade waterproof connectors, making it suitable for harsh conditions such as humidity and dust. It is an ideal choice for liquid flow monitoring and control in small-to-medium diameter pipelines.
Application
Processing and Manufacturing Industry
Industrial Waste Water Treatment and Recycling
Filter System
Water Treatment and Regeneration
Liquid Supply System
Water Distribution Network
Cooling Water Monitor
Chemicals
Textile Finishing
Pool
Heat Exchanger
Installation display
